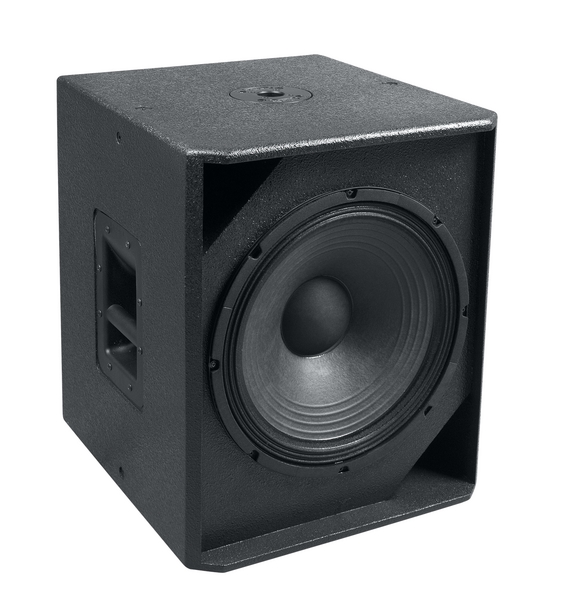

Proel has developed the SMART V-PLUS series to meet the requirements of those who require reliable, good performance products in an affordable, good value price range. The trapezoidal cabinet is made with reinforced 15mm beech plywood with a resistant anti-scratch paint finish and several M10 flying points. The SMART PLUS is made of internally reinforced, low resonance wood composite and covered with high quality Class 1 fire resistant carpet. Both series feature a robust protective metal grille, a comfortable ergonomic handle, resistant rubber feet and a die-cast aluminium ¡®top hat' fl ange for stand mounting. The passive subwoofers of the SMART V-PLUS series are equipped with a 160Hz high pass filter, which when connected to a mid / high satellite allow the simple creation of a 3 way system. The active subwoofers feature a electronic stereo crossover allowing any subwoofer-satellite combination. The SMART V-PLUS series offers a wide choice of systems for both musical and installation applications. The active versions of the SMART V-PLUS series feature dynamic Class H amplifiers, which are both reliable and powerful with reduced weight and dimensions.


Datasheet
System type :
active vented enclosure subwoofer
Amplifier Continuous Power :
250 W
Frequency response :
40 Hz - 160 Hz
Maximum (peak) Output :
125 dB @ 1m
Low Frequency Device :
15'' woofer
Crossover Frequency :
100 Hz or 160 Hz
Power Supply :
230 VAC 50 Hz or 117 VAC 60 Hz
Maximum Power Consumption :
510 VA
Connectors :
IN: 2 x combo
OUT: 2 x jack 1/4'', 2 x XLR M
Construction :
15 mm beech plywood
Finishing :
anti-scratch finish
Cabinet Colour :
black
Mounting Pole :
1 x top
Flying System :
4 x M10 - top, bottom
Weight :
28.6 kg (63.063 lb)
Dimensions (W x H x D) :
46.5 x 55 x 48 cm

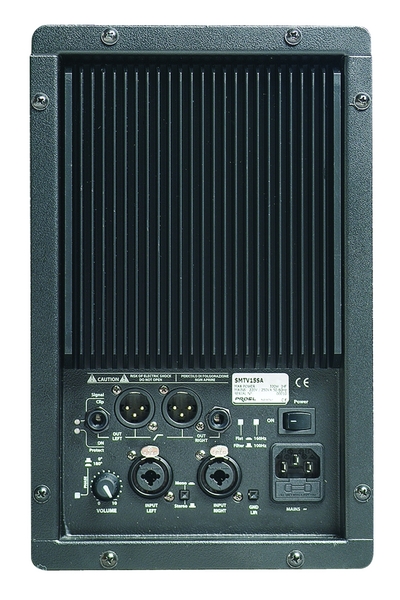

Controls :
volume, stereo/mono, flat out, gnd. lift, x-over freq. 100 Hz -
