Every note is on the money, each instrument sounds sweet. The band is well-rehearsed, tight like clockwork, and ready to strut its stuff in front of their faithful fans. After all, the goal of every band is to pull off a successful gig, play for an enthusiastic audience, and enjoy the pay-off for all their efforts. But the line between glee and gloom is thin. Among all the potential fun-killers at gigs, the sound system is by far the most common culprit. Hauling it demands brute force, and making sense of what seems like miles of cable demands patience. Often, despite an epic-length sound check, the system still fails to deliver decent sound. As if that weren't enough, the band is expected to play soothing background music during the cocktail hour, and then kick out the jams for a blowout bash to follow. Many systems for bands are heavy, hard to set up, and complicated. Racks, power amps, cords, speaker stacks?even with all this, it only manages to sound decent at a medium volume level. Turn it up and the sound soon grates; back it off and it turns thin and puny. HK AUDIO systems are designed to deliver fullspectrum sound that uniformly maintains punch and dynamics all across the board from soft to loud. These systems are remarkable in the amount of effective sound pressure levels they produce; which is another way of saying that each system always delivers optimal sound right up to peak volume. Even without constantly tweaking knobs, HK AUDIO systems consistently sound full and rich. Compact housings to facilitate transport, integrated electronics to simplify set-up, and smart circuits to streamline handling: These features make life easier for every band, freeing musicians to focus on the essentials: their music and their audience.
The perfect rig for playing successful gigs in tents, halls, and open-air events, PROJECTOR weds audio expertise gained with big touring rigs to the advantages of HK AUDIO Active Systems. Brawny enough for big bass sounds yet ultraresponsive for rendering fine dynamic details, four horn-loaded 18" subwoofers with 600 watts RMS each pack a mighty low-end punch, even over longer distances. Courtesy of a 12" speaker and 2" driver combination, the horn-loaded mid/high unit ensures[|]
complex signals remain clean and articulate all the way to the back row. A truly professional tool, PROJECTOR sports classy details such as rugged 18-mm birch plywood housings, PowerCon mains sockets, and Aeroquip flight tracks on the mid/high units. Compact housings furnished with rugged 80-mm casters make the system easy to roll and a pleasure to set up.
Facts & Features
- The heavy-duty power pack for big gigs.
- Fully horn-loaded ? plenty of punch even at distances of 50m/150ft. and more.
- Locking Powercon® socket
- 3-way active electronics featuring OFR™ technology
- 2 x 300-watt RMS power amps with Opto-Limiter for the mid/high cabinets
- 600-watt RMS bass power amps with DynaClip™ limiter

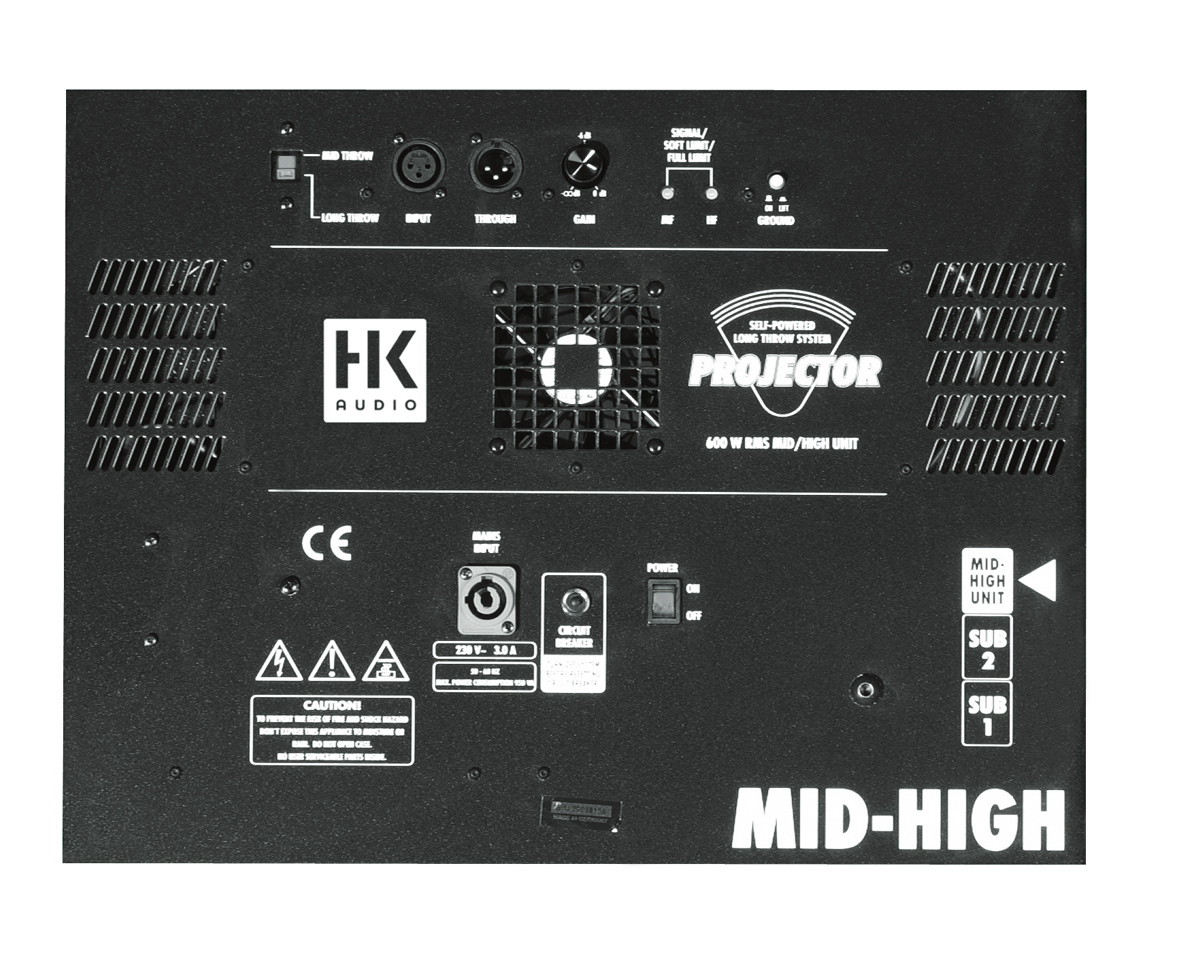

- Flyable Mid-High Units equipped with mid/longthrow switch

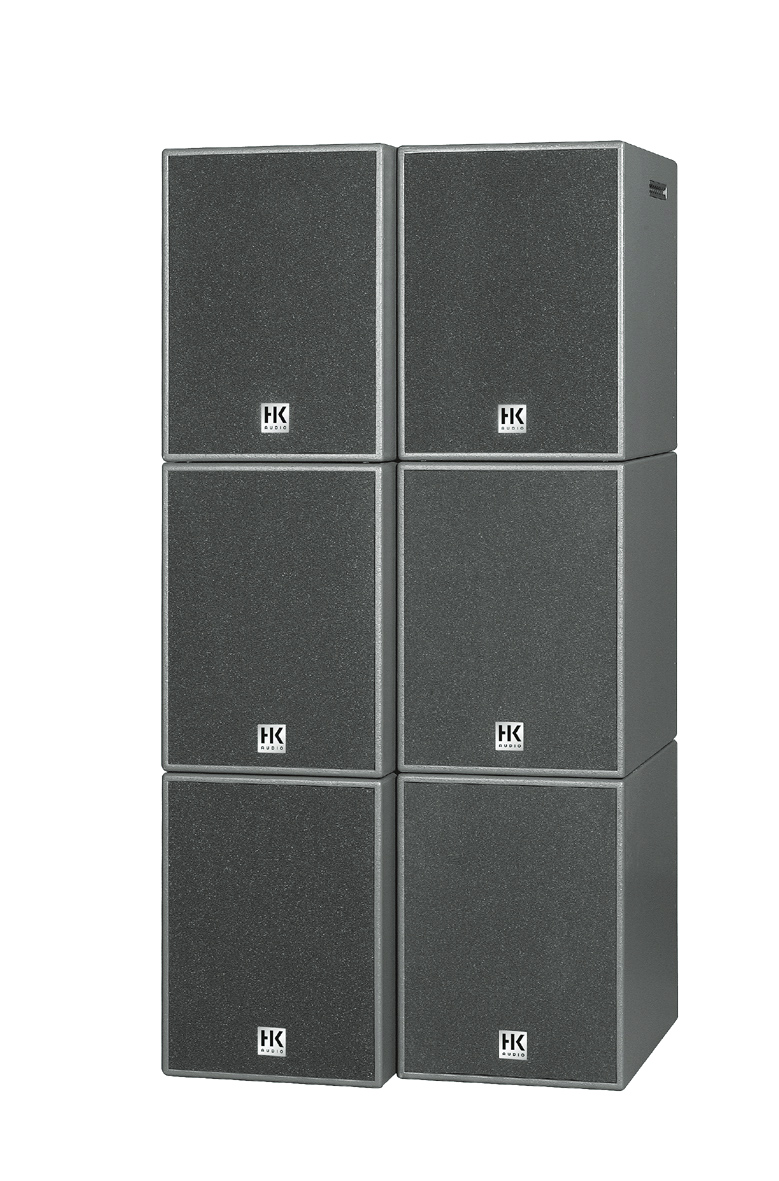

- Basic system: four 18” subwoofers, two 12”/2 mid/high-range enclosures, all factory equipped with casters.
- Total system weight: 362 kg/ 797 lbs.
Specifications
| Product Class |
Bandaudio |
| Model |
Projector - Mid/High |
| Frequency response +/- 3 dB |
120 Hz - 19 kHz |
| Sensitivity 1W |
110 dB |
| Maximum SPL, @ 10% THD |
131 dB @ 10% THD (half space) |
| Low/Midrange amplifier |
300 W |
| HF Amplifier |
300 W |
| Active protectiion circuits |
Opto-Limiter |
| Connections |
1x XLR In, 1x XLR Through |
| LF Speaker |
1x 12" |
| HF Driver |
2" |
| Horn characteristics |
60° x 40° CD horn |
| Crossover frequency |
900 Hz, 12 dB/ oct. passive |
| Casters |
factory-equipped with Casters |
| Handles |
2, integrated |
| Enclosure |
Birch plywood |
| Grille |
metal grille with acoustic foam |
| Finish |
acrylic painture, gray |
| Dimensions (WxHxD) |
51 cm x 69 cm x 80 cm |
| Weight |
65 kg / 132 lbs. |
| Title |
Projector |
| Product Class |
Bandaudio |
| Model |

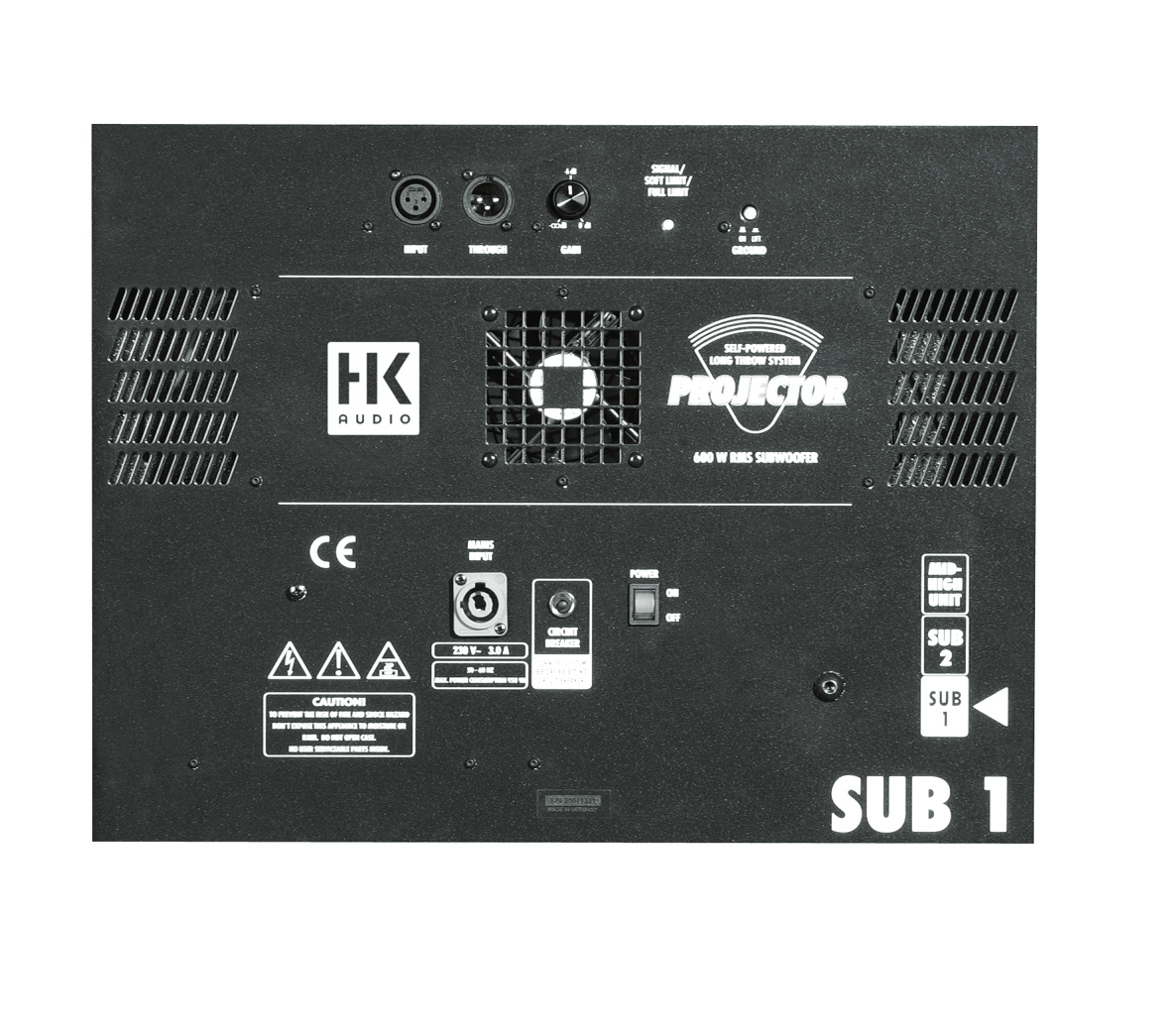

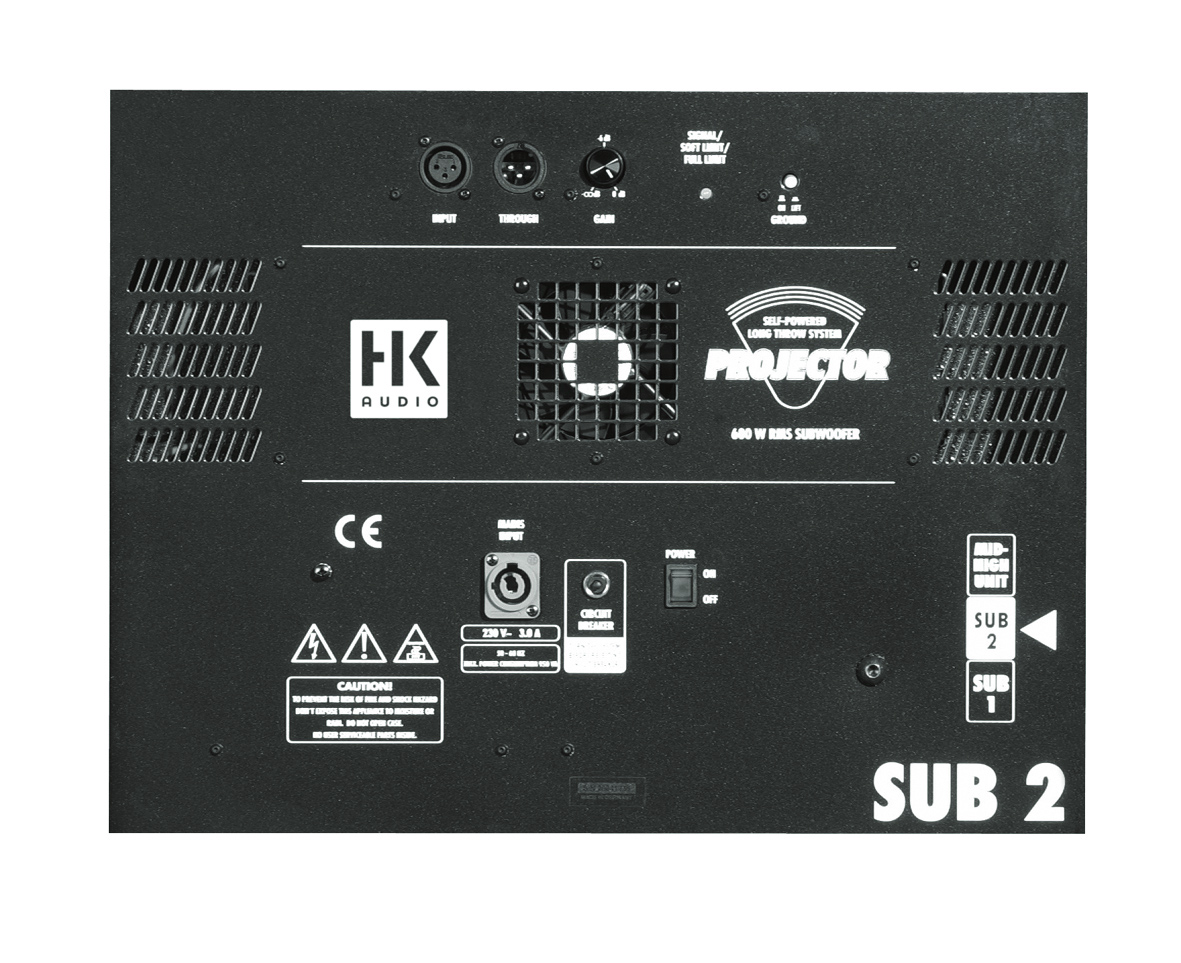

Projektor Sub |
| Frequency response +/- 3 dB |
44 Hz - 120 Hz |
| Sensitivity 1W |
106 dB |
| Maximum SPL, @ 10% THD |
131 dB @ 10% THD (half space) |
| subwoofer amplifier |
600 W |
| Active protectiion circuits |
DynaClip Limiter, Subsonic-Filter |
| Connections |
1x XLR In, XLR Through |
| LF Speaker |
1x 18" |
| Casters |
factory-equipped with casters |
| Handles |
2, integrated |
| Enclosure |
Birch plywood |
| Grille |
metal grille with acoustic foam |
| Finish |
acrylic painture, gray |
| Dimensions (WxHxD) |
51 cm x 69 cm x 80 cm |
| Weight |
58kg / 129 lbs. |
| Title |
PROJECTOR |
| Product Class |
Band Audio |
| Model |
PROJECTOR System |
| Info |
The perfect rig for playing successful gigs in tents, halls, and open-air events, PROJECTOR weds audio expertise gained with big touring rigs to the advantages of HK AUDIO Active Systems. Brawny enough for big bass sounds yet ultraresponsive for rendering |
| Headline |
Transparent sound projection to the back row |
| Power Rating |
3600 W |
| Audience |
1000 |
| Frequency response +/- 3 dB |
44 Hz -19 kHz |
| Active protectiion circuits |
DynaClip Limiter, Subsonic-Filter, Opto-Limiter |
| LF Speaker |
4x 18" |
| Low/ Mid Speaker |
2x 12" |
| HF Driver |
2x 2" |
| Optional accessories |
HK AUDIO Protection Covers, PROJECTOR Tilt-Unit |
| Enclosure |
Birch plywood |
| Grille |
metal grille with acoustic foam |
| Finish |
acrylic painture, gray |
| Weight |
362 Kg / 796.4 lbs. |
Accessories
|

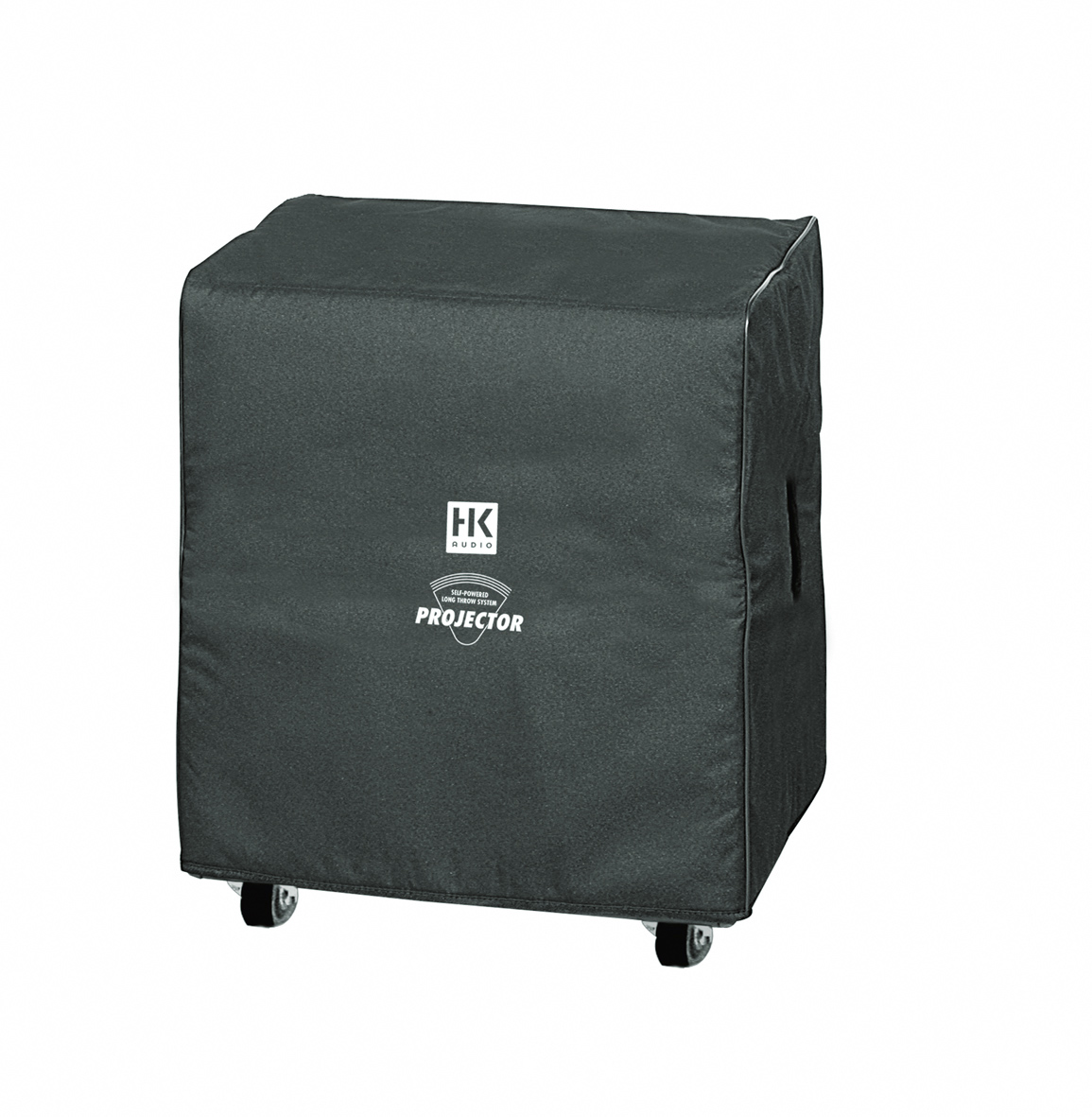

HK AUDIO Protective Covers
Tailored protection for your HK Audio Active System: Made of water-repellent, extremely tear-resistant nylon, these thickly padded covers afford excellent protection for the PA en route to and from gigs. With slots providing easy access to the handles of all the cabinets, the enclosures may be carried with the covers on. Zip-fasteners seal the top unit cover completely. |
|
|

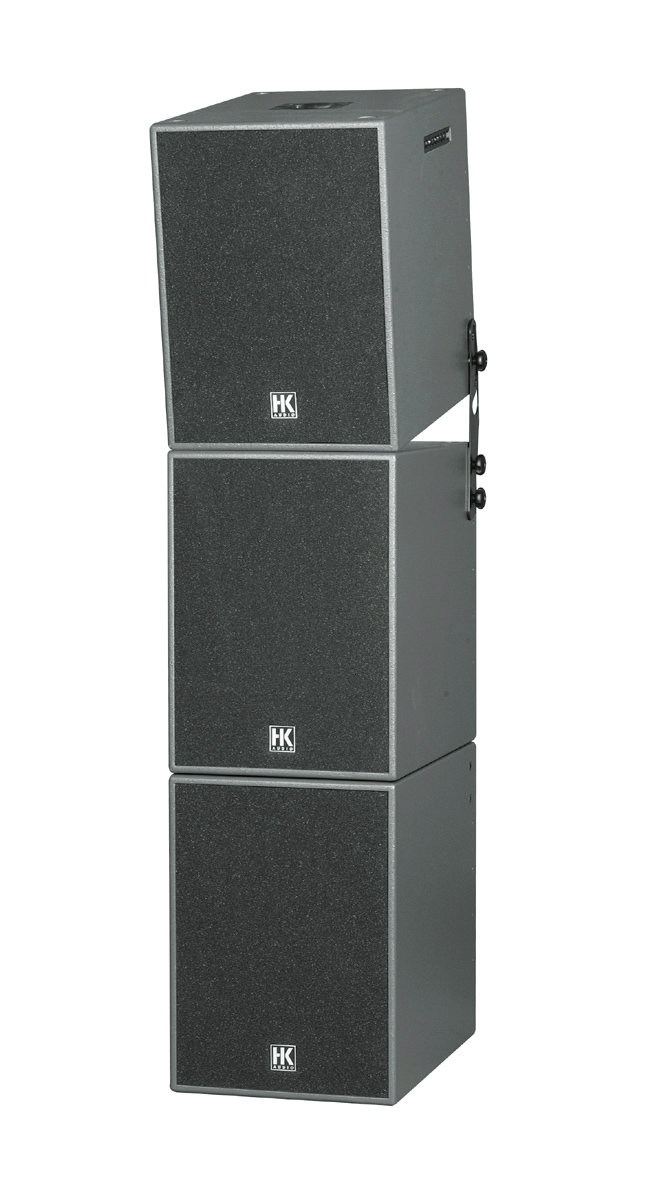

PROJECTOR Tilt-Unit
The Tilt Unit is a practical tool enabling stacked PROJECTOR mid/high units (standing on the subwoofers) to be aimed for optimum coverage of the audience area. This ensures energy generated by the system is exploited efficiently. The PROJECTOR Tilt Unit offers three tilt angles of 5°, 10° and 15°. |
|
| |
|
