4023 + TB4000 + CSM4000 - Speech Microphone Package






스피치 용도에 맞게 구성된 DPA 컴팩트 마이크와 악세서리 패키지 입니다.

구성

1. 4023 Compact Microphone
2. TB4000 Table Base
3. CSM4000 Compact Shock Mount


* 4023 Compact Microphone *

The Type 4023 is a phantom powered (P48) condenser microphone using the same type of cartridge as the famous Type 4011, but is preamplified using a build-in ultra-small thick-film mounted FET-preamplifier. The 4023 has a standard LEMO-connector for simple and safe mounting and removal of the microphone and is designed for usage together with the elegant and flexible Flamingo Series floor stands.

The linear on-axis frequency response from 40 Hz to 20 kHz (±2 dB) together with the extremely smooth off-axis response makes the Type 4023 the optimal choice in live situations in front of both the non-professional and the professional performer. The Microphone is supplied with a 3 m cable Lemo to XLR.



Directional characteristics of DPA 4011/12/21/22/23 (normalised).

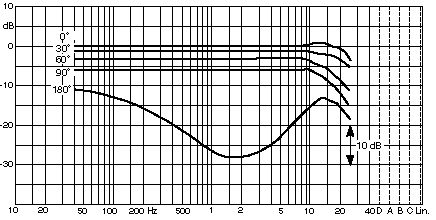

On-and off-axis responses of DPA 4011/12/21/22/23 measured in 30 cm.


On-axis amplitude and phase responses of DPA 4011/12/15/16/21/22/23 plotted using a linear frequency axis for evaluation of the phase response.

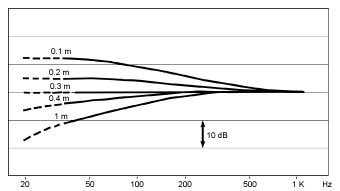

The proximity effect exhibited by the DPA 4011/12/21/22/23.

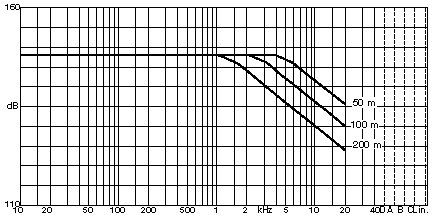

SPL-handling capability (before clipping occurs) of DPA 4011 with various cable lengths (based on nominal sensivity).

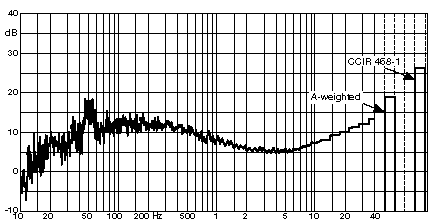

Typical third-octave inherent-noise spectrum of DPA 4011 and 4015.



* TB4000 Table Base *

The Table Base TB4000 is a beautifully designed base for use with most microphone holders with a 3/8-inch thread.

It has a black non-reflective surface and is optimized for use with Compact Shock Mount CSM4000, resulting in a table microphone solution, that is not affected by low frequency transmission through the table.







* CSM4000 Compact Shock Mount *

The CSM4000 alias "The Radiator Mascot" is a shock mount specially designed for rubber suspension of Compact Microphones on standard microphone stands, the TB4000 Table Base or the MB4000 Magnet Base.

The recommended extra soft Rubber Mounts provides an efficient absorption of any vibrations, that might occur during use. It is fitted with one DDS0019 Rubber Mount for Ø 19 mm microphones as standard, but can also be fitted with Rubber Mounts for both Ø 11-13 mm and Ø 16 mm microphones. The robust plastic ring offers excellent protection of the microphone, if used for example on a drum kit.

The CSM4000 is fitted with a thread adapter, which allows usage on up to three of the most popular international standard threads used on microphone stands.
