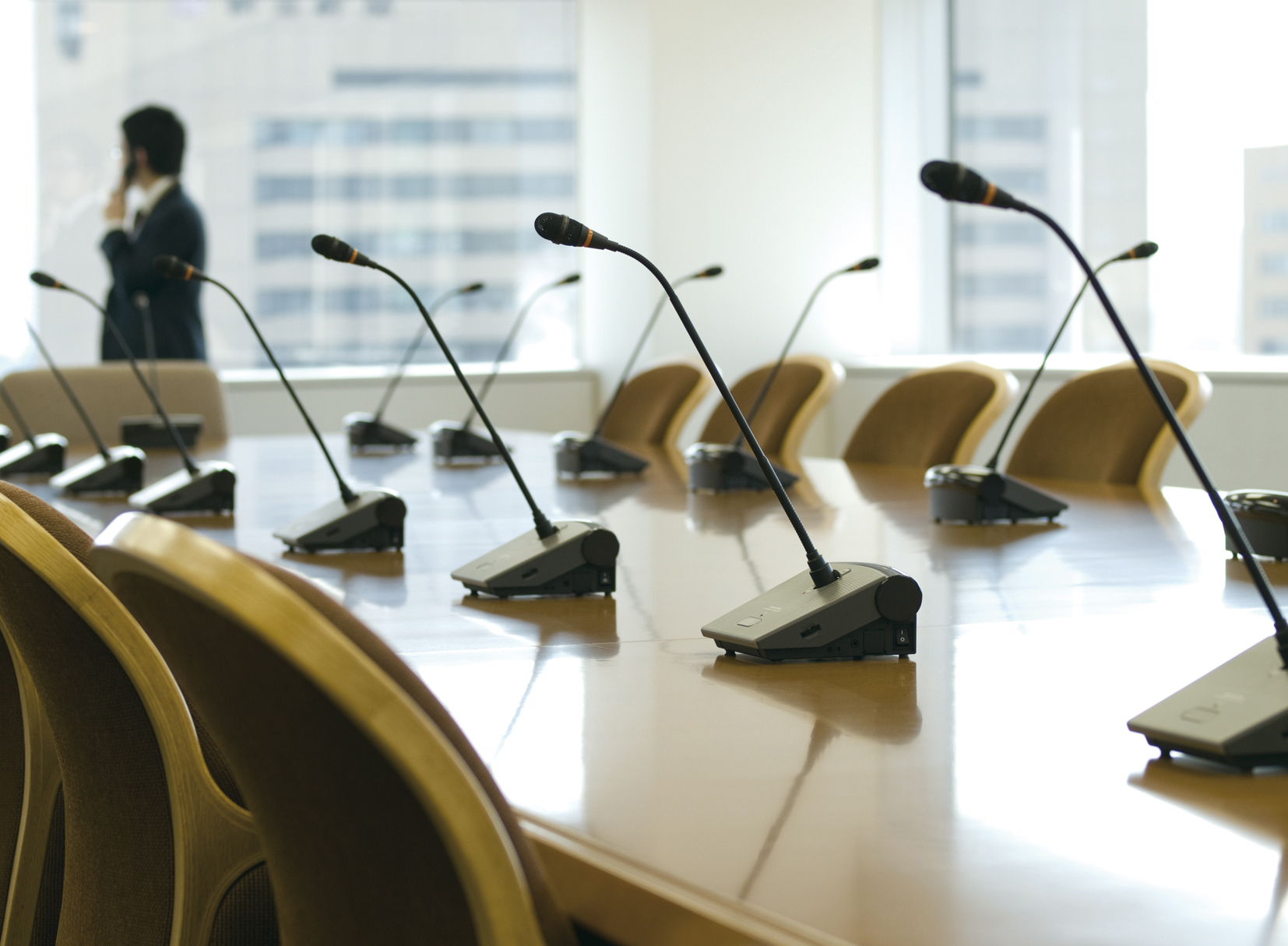

The ATCS-60 infrared conference system offers all the advantages of infrared communication complete with wireless transceiver microphone units. Wireless infrared technology provides the user with greater flexibility while configuring the system and freedom of choice when placing microphones. From intimate meetings to large boardrooms and events, the ATCS-60 will adapt to meet your needs.

Additional features include four selectable channels for multi-language conferences and an automated camera function facilitating audio visual integration.

The option of software control is also available, with the user able to adjust camera position and microphone settings from “Conference Manager” software.

Infrared technology keeps your information in your conference room
In the 21st century, the control of information is a top priority. With the ATCS-60 conference system your wireless signal won't leave the room, let alone reach another building. While typical UHF wireless systems broadcast right through walls, the ATCS-60 keeps your signals safe & secure, with no information leakage.

Praised for flexible system configuration, intuitive operation, and selectable channels for multi-language groups, Audio-Technica's innovative ATCS-60 is a natural choice for everything from large-scale conferences to intimate gatherings. Wherever your communications lead you, experience more.

General Features

Flexible and easy modify
Microphone and camera settings can be controlled by a PC running the “Conference Manager” software. The upgradable structure of the system makes it easier to adapt your conference setup.

Unit selection function
By utilizing ID switch methodology, the ATCS-60 guarantees prompt and responsive unit selection.

All finish function
The chairperson's unit has control to override all other units with the “all finish” function.

Battery life indication
When battery life is low, both the power LED and microphone LED will flash rapidly as a warning.

Listening options
Built-in speaker and headphone jack with personal volume control.

Voice Detection
The user can select automatic or manual mode. In the automatic mode, the microphone is turned on when spoken into and turned off when there is no voice. The holding time can be altered to cater to users' needs. In manual mode, the simple operation of pressing the TALK (speech) button enables the on/off switching.

Simultaneous interpretation
Up to 4 separate channels for multi language meetings, making it possible to have one mother tongue and three additional translations.

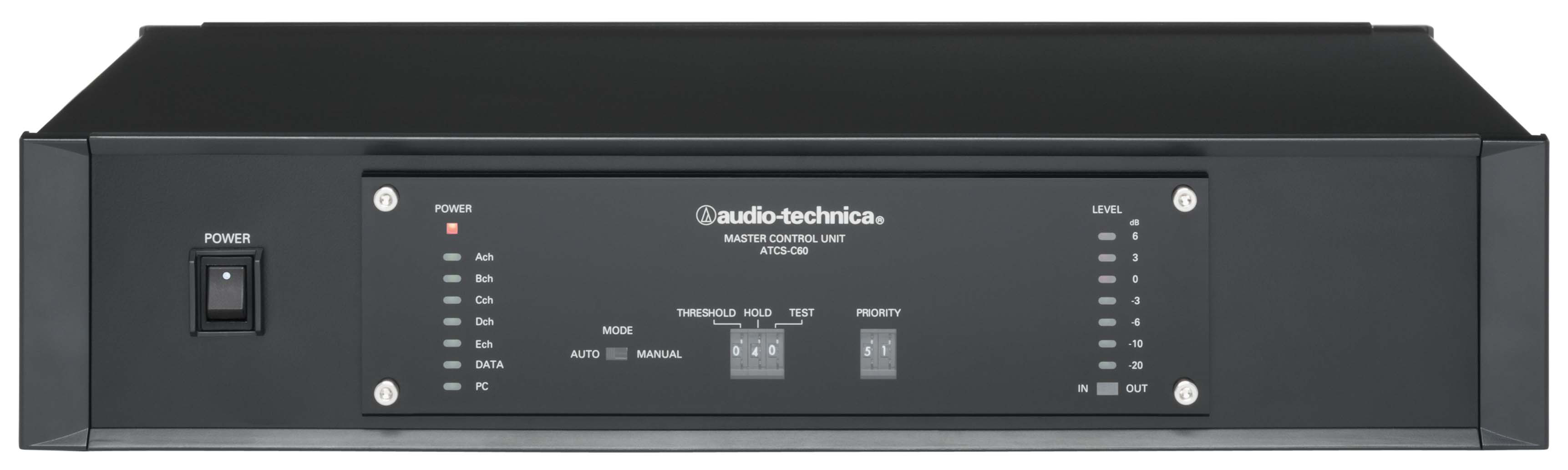

ATCS-60 System Components & Accessories List ATCS-C60 Master Control Unit: MSRP US$4,900.00
ATCS-A60 IR Transmitter/Receiver: MSRP US$1,000.00
ATCS-M60 Delegate Unit: MSRP US$1,240.00
ATCS-60MIC Dedicated Microphone: MSRP US$170.00
ATCS-L60MIC Dedicated Microphone (Long): MSRP US$190.00
ATCS-C60MAG-REG Software: MSRP US$1,800.00
DMQ-60 Monaural Earphone: MSRP US$40.00
ATCS-B60 Battery Charger: MSRP US$1,300.00
LI-240 Lithium-ion Battery: MSRP US$180.00
ATCS-D60 Distributor: MSRP US$210.00
ATCS-M60: World standard model

• Main feature: Equipped with automatic functions, no need to push button
• Number of buttons: 1 Speech button (for asking and finishing)
• Loudspeakers: (Loudspeakers ON during speech)
• Number of monitors: 4ch
• Earphone outputs: 1 (4ch selection type)

• Automatic functions: Can be set to the manual mode at front of ATCS-C60, and then set the threshold and holding time
• Speech modes: Manual mode: “FIFO” and “LIFO” can be selected (at the front of ATCS-C60)
• Maximum simultaneous speakers: Five (free combination of the chairperson and participants)
• Number of speech priorities: Up to 4 people (with special channel)
• Number of speech demands: 10
• Chairperson unit: Configured in ID001
• All finish function: Chairperson unit (by pressing and holding the “TALK” button) and prohibiting speeches by others (by pressing the button)
• Low battery indication: LED flashing

• Battery: LI-240 lithium-ion battery of 2,400mAh
• Standard operation time: Continuous speech?about 6 hours
• Power saving mode: Signal reception status?about 10 hours
• Charging time: About 5.5 hours
• Corresponding charger: ATCS-B60
• Corresponding IR transmitter/receiver unit: ATCS-A60 (Up to 16 sets can be configured with ATCS-D60)
• Number of connected coaxial cables: 1
• Category of microphones: Selection from ATCS-60MIC or ATCS-L60MIC (dedicated types)
• Corresponding master control unit: ATCS-C60
• PC control: Yes

• Speech status display: Yes
• Battery status display: Yes
• Speech control: Automatic mode?Remote control impossible
  Manual mode?Remote control of speech / speech finish
• Automatic function: (Switch with the manual mode) (Setting of threshold and detailed holding time)
• Speech mode: Manual mode can be selected from “FIFO”, “LIFO” and ”chairperson priority”
• All finish: Automatic mode?Remote control impossible
  Manual mode?Remote control possible
• Screen layout: Microphone units can be freely configured in the screen
• Individual volume setting: Yes
• Individual volume holding: Yes
• Overall volume setting: Yes
• Overall volume holding: Yes
• Individual threshold setting: Yes
• Individual threshold holding: Yes

• Remaining time display: Yes
• Camera tracking: Yes
• Audio/video recording: Yes
• Conference playback: Yes
• Conference minutes making: Yes
• Grouping: Five groups for simultaneous interpretation

  Noise or interruption may occur in the following cases. Please contact us for details. ? Multiple infrared facilities, such as the simultaneous interpretation system and the listening system, are used within the same room. ? Plasma display panels and lighting equipment emitting infrared rays (e.g., incandescent lamps and halogen lamps) are used. ? When the IR transmitter/receiver unit or the conference units are directly subject to sunlight .

• Bandwidth: 1 ~ 10 MHz
• Number of Channels: Voice 5 ch; monitor 4 ch; data 2 ch
• Modulation Method: FM modulation
• Infrared Data Communication: 9,600 bps
• Speaker Output: 8 Ω, 2W
• Headphone Output: Ø 3.5 mm monaural mini-jack
• Power Supply: Dedicated lithium-ion battery with 7.4 VDC, 2400 mAh or AC adapter with 12 VDC, 1A
• Standard Operation Time: Continuous speeches: 6 hr; Signal reception status: 10 hr.
• Dimensions: H 75.5 mm × W 187 mm × D 149 mm
• Weight: 0.6 kg (microphone and battery excluded)
• Optional Accessories: LI-240 lithium-ion battery, AC adapter

• Model: Fixed-charge back plate
• Polar Pattern: Hypercardioid
• Frequency Response: 200 ~ 5,000 Hz
• Sensitivity: (0 dB = 1V/ 1 pa, 1 kHz) ? 45 dB
• Maximum Input Sound Level: 100 dB S.P.L. (1kHz,THD 1%)
• Signal-Noise Ratio: (1 kHz,1 pa) > 61 dB
• Output Impedance: < 680 Ω, unbalanced
• Finish: Black, matted paint spraying
• Weight: 115 g (ATCS-60MIC)

• Bandwidth: 1 ~ 10 MHz

• Number of Channels: Voice 5 ch; monitor 4 ch; data 2 ch

• Modulation Method: FM modulation

• Infrared Data Communication: 9,600 bps

• Audio Input: Monitor input (-10 dBV, unbalanced) 4 systems
  External input 1 (-10 dBV, unbalanced) 1 system
  External input 2 (-10 dBV, balanced) 1 systems (-50 dBV, unbal.) 1 system

• Audio Output: Direct output (-10 dBV, unbalanced) 5 systems
  Output 1(-10 dBV, unbalanced) 1 system; Output 2 (-10dBV, bal.) 1 system
  Recording output (-10 dBV, unbalanced) 2 systems

• Power Supply: AC100 ~ 240V 50/60Hz 75W

• Weight: 4.2 kg (Main body only)

• Accessories: 2 rack adapters, 6 rack adapter installation screws, 5 mini drivers, AC power cord

* ATCS-60 Manual (PDF)
