8-channel USB audio interface

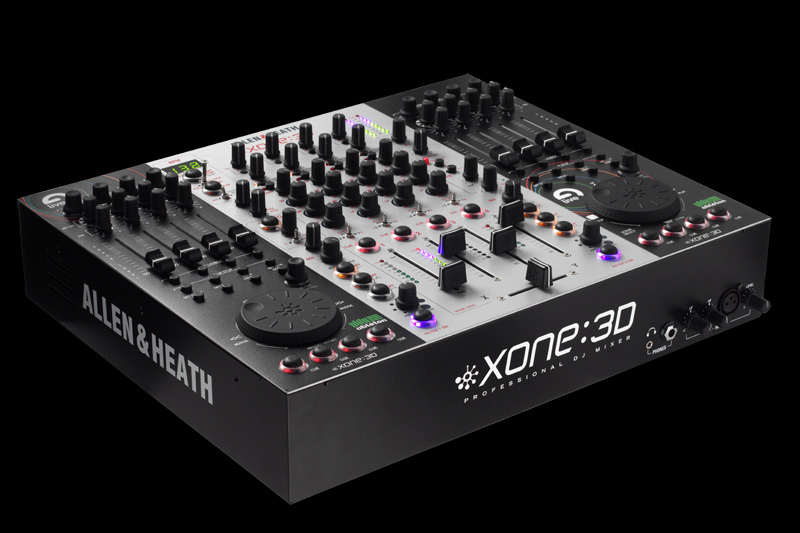

The Xone:3D is a unique performance DJ controller that for the first time enables the seamless integration of computer-based digital media into the traditional DJ workspace. Combining a fully featured, high specification professional analogue DJ mixer with a comprehensive MIDI control system and a high end multi-channel USB soundcard, the Xone:3D has been designed in conjunction with some of the world?s most cutting-edge DJ/producers.

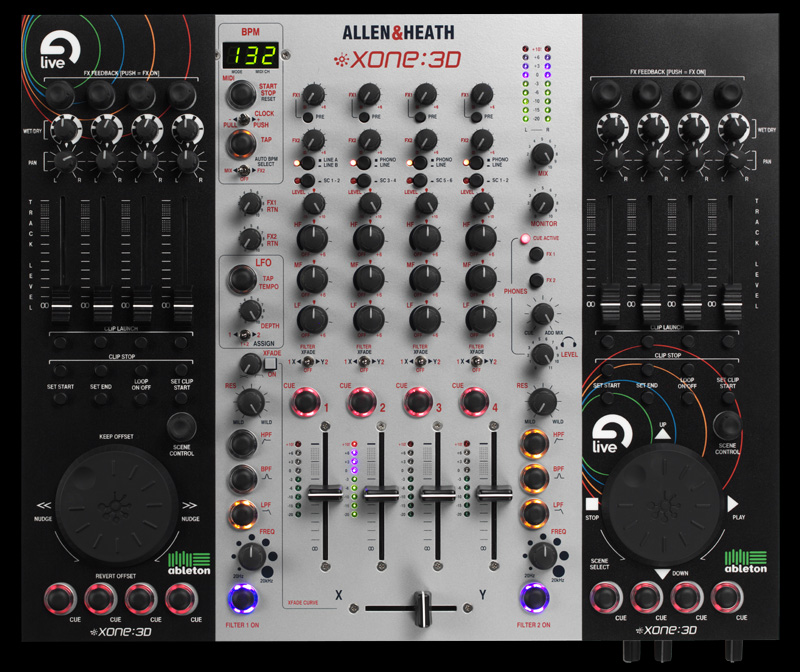

Mixer:
? 4 multi-input stereo channels: RIAA preamps for turntables on 3 inputs; channel 1 is Line/Line
? 3-band total kill EQ: 6dB to off
? 2 FX sends: pre/post selection (internal on FX2)
? 2 stereo returns
? Headphone monitor with mix/cue control: 3.5mm and ¼? sockets

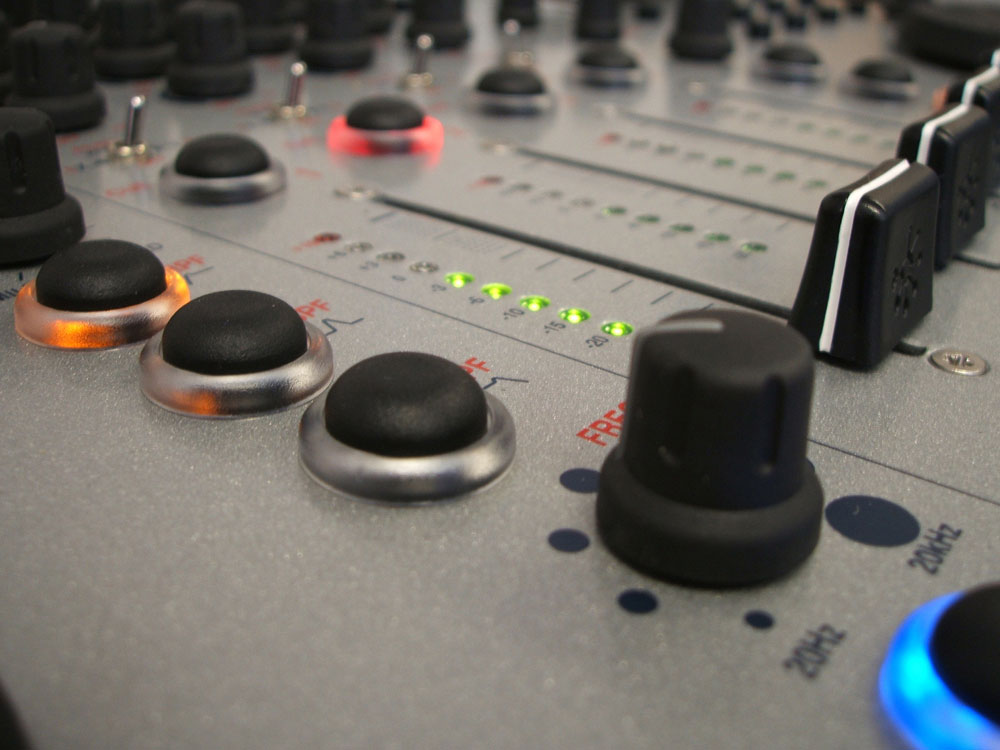

? 2 analogue VCF filters: low-pass, band-pass, high-pass, resonance frequency, and filter 'on' switch
? Assignable LFO with depth control
? Mic input: On XLR connector; gain control and 2-band EQ control available
? Power supply: High performance internal switch-mode supply
? RIAA: for THREE turntables (four via internal jumper link)
? Dual Rail VCA Cross Fader

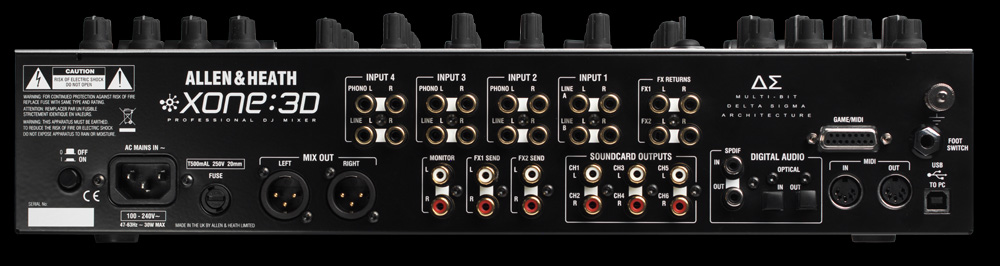

USB SoundCard:
? Uses 24 bit stereo Analogue to Digital converters and Digital to Analogue converters (not lower spec CODECs
? Sample rate can be set to either 44.1kHz or 48kHz; interfaces to any digital audio source up to 192kHz
? Soundcard fed from main mix, FX1, or direct from channels
? 8 channels - either 6 channels from a PC and 2 returns or 4 channels from a PC and 4 returns.
? Sends - mix, FX, or individual analogue channels may be routed to PC or digital outputs

MIDI Controller:
? Mappable MIDI controls:
? 105 MIDI control messages available
? 8 x 60mm linear faders
? 16 x detented rotary pots
? 10 rotary encoders, 50 switches, 2 custom jog wheels with micro switches
? 8 illuminated push switches
? Multi-function jog wheels with switched navigation control
? Xone:3D is compatible with any PC software that has MIDI assignable functions: for instance,
lighting controller or visual effects programs

The Xone:3D ships with mains leads, USB cable, user guide, spare knobs & faders, A&H stickers, Traktor overlays, Ableton overlays

Xone:3D Features:

4 multi-input stereo channels
RIAA preamps for turntables on 4 inputs

3-band total kill EQ
6dB to off

2 FX sends
pre/post selection (internal on FX2)

2 stereo returns

Headphone monitor with mix/cue control
3.5mm and 1/4" sockets

2 analogue VCF filters
low-pass, band-pass, high-pass, resonance frequency, and filter ?on? switch

Assignable LFO with depth control

Mic input
On XLR connector; gain control and 2-band. EQ control available

Power Supply
High performance internal switch-mode supply

RIAA
for THREE turntables (four via internal jumper link)

USB SOUNDCARD

Soundcard
fed from main mix, FX1, or direct from channels
8 channels
Either 6 channels from a PC and 2 returns or 4 channels from a PC and 4 returns.
Sends
Mix, FX, or individual analogue channels may be routed to PC or digital outputs
Sample rate converter
192 kHz compatible

MIDI CONTROLLER:
Mappable MIDI controls:
105 MIDI control messages available
8 x 60mm linear faders
16 x detented rotary pots
10 rotary encoders
50 switches
2 custom jog wheels with micro switches
8 illuminated push switches
Multi-function jog wheels with
switched navigation
