Desk / Rack mount all-purpose console

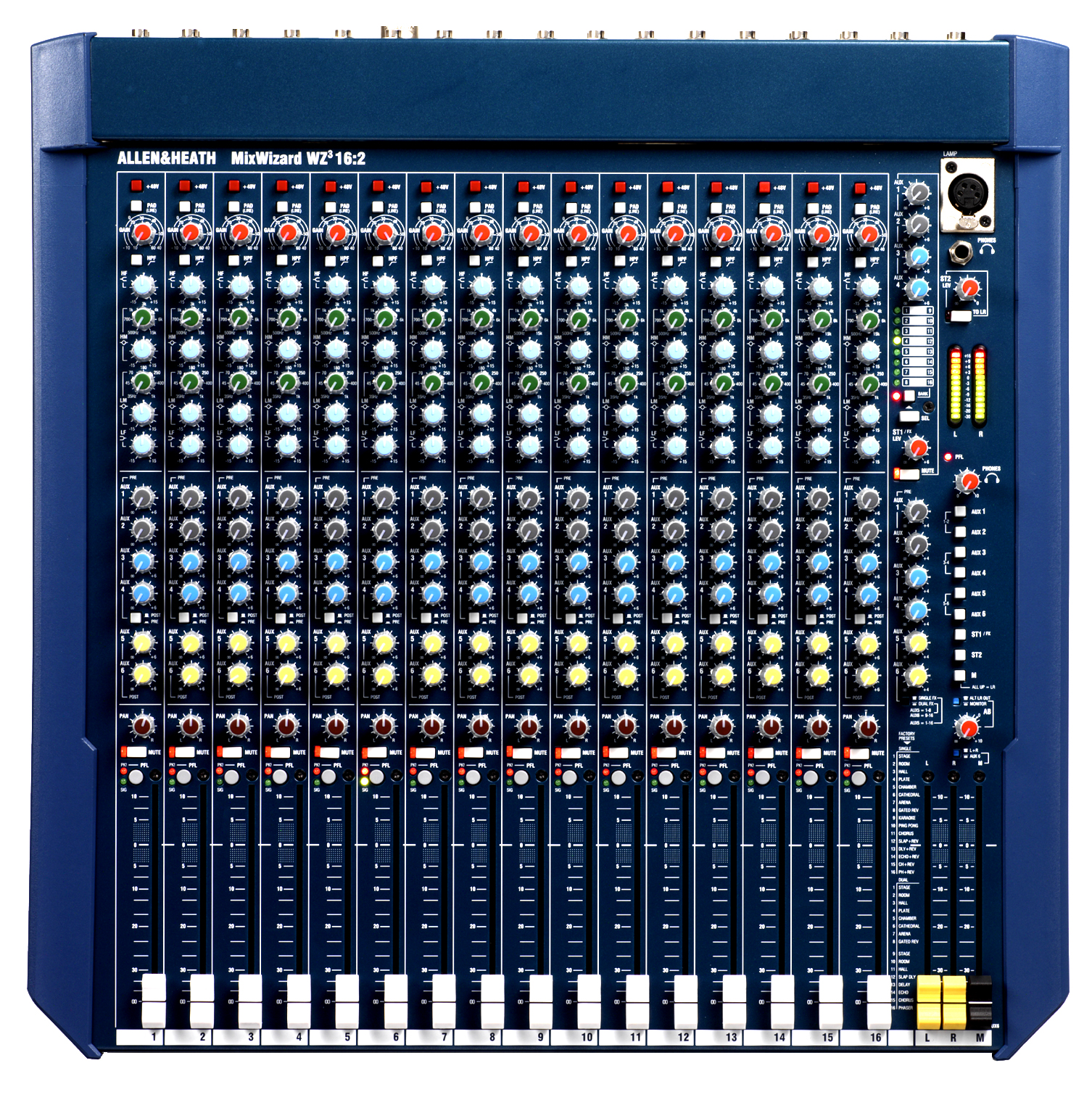

The WZ3:16:2 is a versatile, easy to use 16 mic/line channel mixer - the latest generation of this industry standard multi-purpose design

FX Editor Software:

The internal FX parameters may be edited via MIDI using a PC running the Allen & Heath FX Editor software. Note that the FX processor was changed during production of the latest generation WZ3 models. One version of Editor software is available for the earlier WZ2 and first release of the WZ3. A different version is now available for the more recent WZ3 release. To check which version you need refer to the serial number of your console:

For earlier serial numbers starting W21602… W21202… W31602… W31202 download Wizard FX Editor software V1.01
Wizard FX Editor Software V1.01


For more recent serial numbers starting W31622… W31222… download Wizard FX Editor software V3.00
Wizard FX Editor Software V3.00

Please read the Release Notes that come with the software before starting. For information on using your own MIDI hardware or software to edit the FX parameters please refer to the MIDI specification document below

MixWizard compact mixers have carved out a unique place in the pro audio pantheon of professional multipurpose consoles. For years, and in every year, Allen & Heath has supplied thousands of MixWizards for hundreds of different applications, all of which have four requirements in common - great sound, high quality, ease of use and lots of really useful features.

The WZ316:2 ships with mains leads, user guide, A&H stickers

MONO INPUTS
16 mic / line channels with 4 band EQ, HPF, individual phantom power, 6 auxes, mute switch, signal and peak indicator leds and 100mm smooth action fader. A configurable direct out and insert using all-metal TRS jacks are provided


STEREO MIX with AB OUT
Main output controlled by 100mm faders with 12 segment 3 colour metering with insert. A-B output for additional L&R stereo output selectable pre or post L&R faders. Unique underpanel mode switch to configure A-B as a local monitor output for additional stereo monitoring

DEDICATED MONO OUTPUT
Mono fader feeds mono XLR output. Source select L+R sum or aux 6 mix for creating separate mono/C or aux fed sub mix

6 AUXILIARY SENDS
6 auxiliaries: 1-2 prefade (option: link to follow pre/post switch), 3-4 switchable pre/post fade (option: permanently prefade) and 5- and 6 post fade (option to follow pre/post switch). Internal option to configure stereo channel L signal to odd auxes and R signal to even auxes. Aux masters are rotary controls with TRS outputs. The aux busses can be monitored in mono or related stereo pairs

4 BAND EQ / HPF
Mono channels have separate controls for sweep and cut/boost on mid bands. HPF @ 100Hz is switchable

2 STEREO RETURNS
TRS] line inputs, routed via level controls to L&R mix. ST1 can feed aux 1-4. Note: the internal FX returns to ST1. The ST1 input allows external FX to be mixed in

ON-BOARD DIGITAL FX
32 FX programs with external midi editing / control. Can be configured in single mode (16 programs fed from aux 5) or Dual mode (8 programs fed from aux 5 plus another 8 programs fed from aux 6). FX are returned via ST1 to the mix, aux 1 and aux 2. FX bybass and selection can be controlled using a footswitch. FX Editor Software: The internal FX parameters may be edited via MIDI using a PC running the Allen & Heath FX Editor software. Note that the FX processor was changed during production of the latest generation WZ3 models. One version of Editor software is available for the earlier WZ2 and first release of the WZ3. A different version is now available for the more recent WZ3 release. To check which version you need refer to the serial number of your console: For earlier serial numbers starting W21602… W21202… W31602… W31202 download : Wizard FX Editor Software V1.01

For more recent serial numbers starting W31622… W31222… download Wizard FX Editor software V3.00 Wizard FX Editor Software V3.00 Please read the Release Notes that come with the software before starting. For information on using your own MIDI hardware or software to edit the FX parameters please refer to the MIDI specification document below.

ENGINEER`s TOOLBOX
Headphone output and local monitor possible, with separate level controls. Red led indicator when PFL on input channels is selected. PFL signal overrides the selected monitor source and L&R metering. A-B output can be configured as local stereo monitor
